This is a personal fork of 3X-UI — the advanced, open-source web control panel for Xray-core — with one major addition: native AmneziaWG support, added as a first-class protocol alongside VLESS, VMess, Trojan, and the rest. Everything else 3X-UI already does (multi-protocol inbounds, per-client traffic accounting, subscriptions, multi-node, the Telegram bot) is unchanged and still works exactly as upstream.
This fork exists to run the author's own routers and servers; it isn't trying to replace or compete with the original project. If you're looking for the general-purpose panel, go to MHSanaei/3x-ui — everything below only documents what's different here.
Important
This project is intended for personal use only. Please do not use it for illegal purposes or in a production environment.
What's different in this fork: AmneziaWG
AmneziaWG is WireGuard with an added obfuscation layer (junk packets, randomized padding, magic-header rewriting) designed to defeat DPI-based protocol fingerprinting — the same tunnel, but one that doesn't look like a tunnel on the wire.
- Native, not Docker. AmneziaWG runs as a real kernel interface on the host, brought up and torn down with
awg-quick/awg— the same DKMS kernel module approach as a nativewg0interface. No privileged sidecar containers. - A first-class protocol. An AmneziaWG inbound lives in the same
Inboundtable as everything else, so it gets bulk operations, the QR/config-download modal, and subscription links for free — nothing bespoke to learn. - Full AmneziaWG 2.0 obfuscation — Jc/Jmin/Jmax (junk packets), S1–S4 (packet padding), H1–H4 (magic headers), and the I1 signature packet, all editable per-inbound with a one-click randomize button, plus a 1.x-compatible fallback for older clients.
- Native IPv6, with per-client NDP proxying so each peer gets a directly-reachable IPv6 address — no NAT66.
- Per-client port-forwarding — DNAT specific ports/ranges straight to one peer's tunnel address.
- Routing a client's traffic through Xray — every AmneziaWG inbound gets its own loopback Xray bridge automatically (no toggle to flip); route any client's traffic through any configured Xray outbound from the panel's existing Routing page, exactly like routing any other protocol.
install.shinstalls the kernel module for you on Ubuntu/Debian/Armbian (ppa:amnezia/ppa), with a fallback for other distros. One thing it can't do for you: disable Secure Boot on your VPS/VM first — a DKMS-built module is unsigned and the kernel won't load it while Secure Boot is enforced.- Reconciled the same way
internal/mtprotomanages itsmtgsidecar: a background job keeps the running interface in sync with what's saved in the database, hot-reloading peer changes viaawg syncconfinstead of bouncing the whole interface when it can.
Features
- Multi-protocol inbounds — VLESS, VMess, Trojan, Shadowsocks, WireGuard, AmneziaWG, Hysteria2, HTTP, SOCKS (Mixed), Dokodemo-door / Tunnel, and TUN.
- Modern transports & security — TCP (Raw), mKCP, WebSocket, gRPC, HTTPUpgrade, and XHTTP, secured with TLS, XTLS, and REALITY.
- Fallbacks — serve multiple protocols on a single port (e.g. VLESS and Trojan on 443) using Xray's fallback support.
- Per-client management — traffic quotas, expiry dates, IP limits, live online status, and one-click share links, QR codes, and subscriptions.
- Traffic statistics — per inbound, per client, and per outbound, with reset controls.
- Multi-node support — manage and scale across multiple servers from a single panel.
- Outbound & routing — WARP, NordVPN, custom routing rules, load balancers, and outbound proxy chaining.
- Built-in subscription server with multiple output formats and custom page templates.
- Telegram bot for remote monitoring and management.
- RESTful API with in-panel Swagger documentation.
- Flexible storage — SQLite (default) or PostgreSQL.
- 13 UI languages with dark and light themes.
- Fail2ban integration for enforcing per-client IP limits.

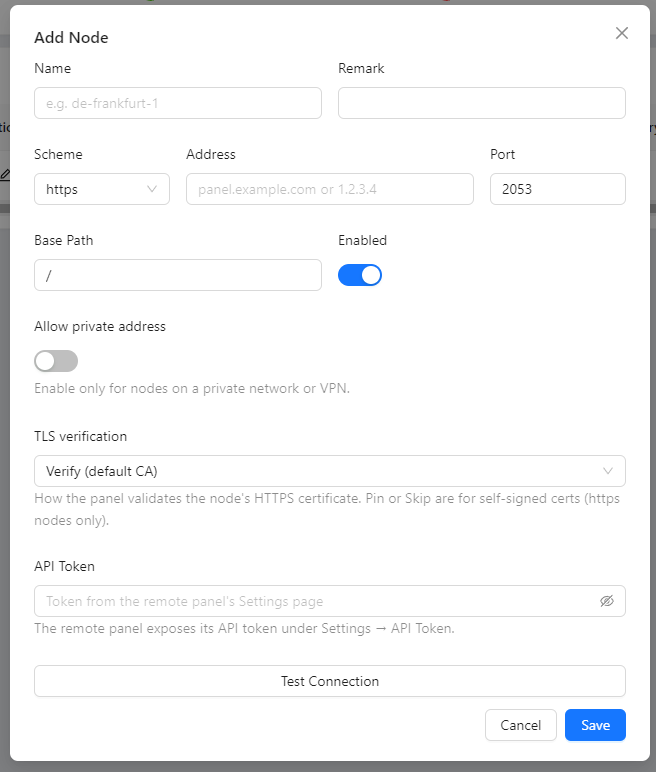

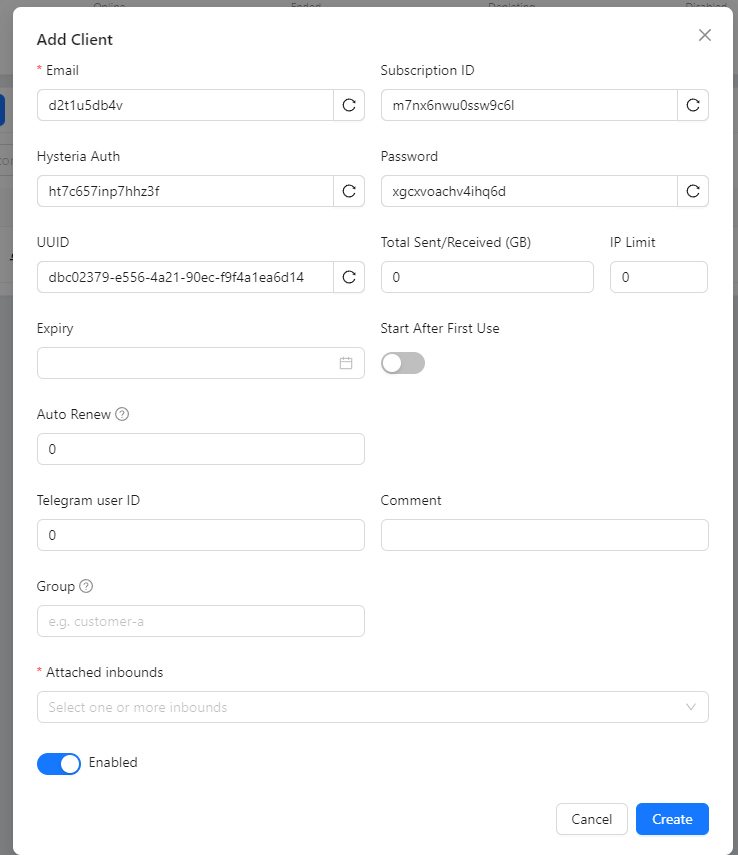

Screenshots
Click to expand
Quick Start
curl -fsSL https://raw.githubusercontent.com/Kuzz007/3x-ui/main/install.sh | bash -s dev
This fork only ever publishes the rolling dev-latest pre-release (rebuilt automatically on every push to main) — there's no tagged stable release yet, so dev is the only channel that currently resolves to anything.
During installation a random username, password, and access path are generated. After installation, run x-ui to open the management menu, where you can start/stop the service, view or reset your login credentials, manage SSL certificates, and more.
For general panel documentation beyond what's in this README, see the upstream project Wiki — none of it is fork-specific, so it still applies.
Unattended install
The installer also runs non-interactively for cloud-init.
Set XUI_NONINTERACTIVE=1 (or pipe with no TTY) and it installs end-to-end with
zero prompts, generating random credentials and writing them to
/etc/x-ui/install-result.env. See deploy/ for:
- Cloud-init user-data — unattended install on any cloud (Hetzner/AWS/DO/Vultr/GCP/Azure/Oracle)
- Hetzner Cloud notes — cloud-init deployment on Hetzner
Supported Platforms
Operating systems: Ubuntu, Debian, Armbian, Fedora, CentOS, RHEL, AlmaLinux, Rocky Linux, Oracle Linux, Amazon Linux, Virtuozzo, Arch, Manjaro, Parch, openSUSE (Tumbleweed / Leap), and Alpine. (Upstream also publishes a Windows build; this fork's CI doesn't — everything here targets Linux servers/routers, and AmneziaWG needs a Linux kernel module regardless.)
Architectures: amd64 · 386 · arm64 (aarch64) · armv7 · armv6 · armv5 · s390x.
AmneziaWG specifically needs a real Linux kernel with the AmneziaWG DKMS module — it will not come up on Windows, and install_amneziawg only automates the kernel-module install on Ubuntu/Debian/Armbian today (see What's different in this fork).
Database Options
3X-UI supports two backends, chosen during the install:
- SQLite (default) — a single file at
/etc/x-ui/x-ui.db. Zero setup, ideal for small and medium deployments. - PostgreSQL — recommended for high client counts or multi-node setups. The installer can install PostgreSQL locally for you, or accept a DSN to an existing server.
At runtime the backend is selected via environment variables (the installer writes these to /etc/default/x-ui for you):
XUI_DB_TYPE=postgres
XUI_DB_DSN=postgres://xui:password@127.0.0.1:5432/xui?sslmode=disable
Migrating an existing SQLite install to PostgreSQL
x-ui migrate-db --dsn "postgres://xui:password@127.0.0.1:5432/xui?sslmode=disable"
# then set XUI_DB_TYPE and XUI_DB_DSN in /etc/default/x-ui and restart:
systemctl restart x-ui
The source SQLite file is left untouched; remove it manually once you have verified the new backend.
Docker
The default docker compose up -d keeps using SQLite. To run with the bundled PostgreSQL service, uncomment the two XUI_DB_* env lines in docker-compose.yml and start with the profile:
docker compose --profile postgres up -d
Note
AmneziaWG inbounds need
awg-quick/awgand the AmneziaWG kernel module on the host — that's the whole point of the no-Docker design in What's different in this fork. Running the panel itself in Docker still works for every other protocol, but an AmneziaWG inbound created from a containerized panel has nowhere to bring its interface up unless the container has host-level network/kernel access, which defeats the purpose. Run natively on the host if you plan to use AmneziaWG.
The image bundles Fail2ban (enabled by default) to enforce per-client IP limits. Fail2ban bans offenders with iptables, which requires the NET_ADMIN capability. docker-compose.yml already grants it via cap_add; if you start the container with docker run instead, add the capabilities yourself, otherwise bans are logged but never applied:
docker run -d --cap-add=NET_ADMIN --cap-add=NET_RAW ... ghcr.io/mhsanaei/3x-ui
Environment Variables
| Variable | Description | Default |
|---|---|---|
XUI_DB_TYPE |
Database backend: sqlite or postgres |
sqlite |
XUI_DB_DSN |
PostgreSQL connection string (when XUI_DB_TYPE=postgres) |
— |
XUI_DB_FOLDER |
Directory for the SQLite database file | /etc/x-ui |
XUI_DB_MAX_OPEN_CONNS |
Maximum open connections (PostgreSQL pool) | — |
XUI_DB_MAX_IDLE_CONNS |
Maximum idle connections (PostgreSQL pool) | — |
XUI_INIT_WEB_BASE_PATH |
The initial URI path for the web panel | / |
XUI_ENABLE_FAIL2BAN |
Enable Fail2ban-based IP-limit enforcement | true |
XUI_LOG_LEVEL |
Log verbosity (debug, info, warning, error) |
info |
XUI_DEBUG |
Enable debug mode | false |
XUI_TUNNEL_HEALTH_MONITOR |
Enable the tunnel health monitor (probes a URL and restarts xray after repeated failures; a restart drops all clients) | false |
XUI_TUNNEL_HEALTH_PROXY |
Proxy the probe is sent through; point it at a local xray inbound so the probe tests the tunnel (e.g. socks5://127.0.0.1:1080). Empty means the probe only checks host connectivity |
— |
XUI_TUNNEL_HEALTH_URL |
URL probed for tunnel health | https://www.cloudflare.com/cdn-cgi/trace |
XUI_TUNNEL_HEALTH_INTERVAL |
Interval between probes | 30s |
XUI_TUNNEL_HEALTH_TIMEOUT |
Per-probe timeout | 10s |
XUI_TUNNEL_HEALTH_FAILURES |
Consecutive failures before a restart is triggered | 3 |
XUI_TUNNEL_HEALTH_COOLDOWN |
Minimum delay between consecutive restarts | 5m |
Supported Languages
The panel UI is available in 13 languages:
English · فارسی · العربية · 中文（简体） · 中文（繁體） · Español · Русский · Українська · Türkçe · Tiếng Việt · 日本語 · Bahasa Indonesia · Português (Brasil)
Developer notes
This is a personal fork and isn't looking for outside contributors, but CONTRIBUTING.md still has accurate, useful local dev-setup instructions (Go/Node versions, the C compiler CGo needs, build/lint/test commands) if you're working on this codebase yourself.
Credit
This fork is built entirely on top of MHSanaei/3x-ui — all of the panel, the multi-protocol support, and the underlying architecture is their work; AmneziaWG support is the only thing added here. If you find the base project useful, the original author's support links are still the right place for it:
The native AmneziaWG implementation in this fork was ported from/inspired by:
- MHSanaei/3x-ui#6086 — the original AmneziaWG PR against upstream (Docker-sidecar approach); this fork reuses its frontend schema/UI structure but replaces the backend with a native, no-Docker manager.
- coinman-dev/3ax-ui — an independent fork already running native AmneziaWG in production; this fork's
awg-quickprocess management, config generation, and AmneziaWG 2.0 obfuscation parameter generator are ported from itsawg/package.
Acknowledgment
- alireza0
- Iran v2ray rules (License: GPL-3.0): Enhanced v2ray/xray and v2ray/xray-clients routing rules with built-in Iranian domains and a focus on security and adblocking.
- Russia v2ray rules (License: GPL-3.0): This repository contains automatically updated V2Ray routing rules based on data on blocked domains and addresses in Russia.
Community Tools
Tools and integrations built by the community around 3x-ui.
- terraform-provider-3x-ui (License: MIT): Manage inbounds, clients, panel settings, and Xray configuration as code with Terraform / OpenTofu.
